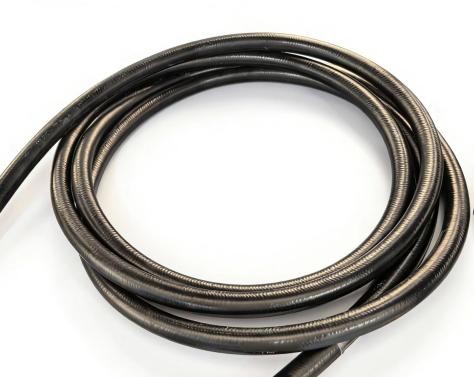

High-voltage cables are specialized cables used for inspection and detection, mainly for connecting high-voltage equipment such as X-ray tubes and accelerators in systems for medical applications, security inspection, and non-destructive testing. Our company's developed high-voltage cables feature a reasonable insulation matching design, unique rubber formula and manufacturing process, and undergo rigorous reliability testing to ensure product performance.

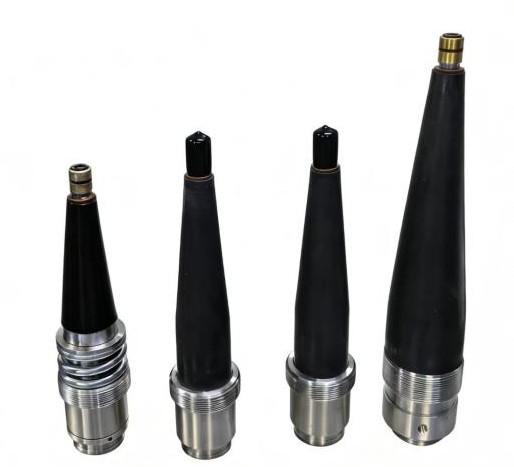

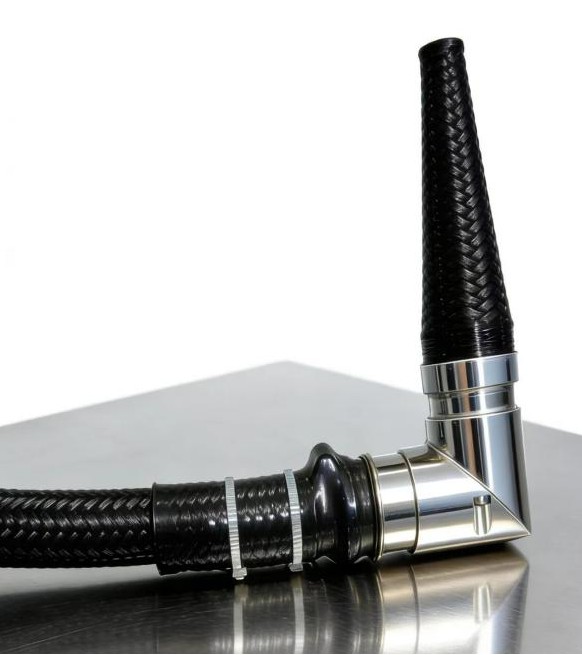

| Specifications and Model | Straight head with spring | Elbow with spring | Straight without spring | Elbow without spring |
| R24 | R24SL | R24SLRA | R24 | R24RA |
| R28 | R28SL | R28SLRA | R28 | R28RA |
| R30 |
The above models can be combined freely
| Type N3 | |
| Rated voltage | 160kVDC |
| Rated voltage test conditions | ≥1.2 times rated voltage / 10 min |
| Insulation resistance | ≥1×10¹² Ω·m (from internal bare conductor to shielding layer, 25℃) |
| Distributed capacitance | 132 pF/m (from internal bare conductor to shielding layer, 25℃) |
| Diameter | 29mm ± 1.0mm |
| Minimum bending radius | 60mm (static installation), 120mm (dynamic installation) |

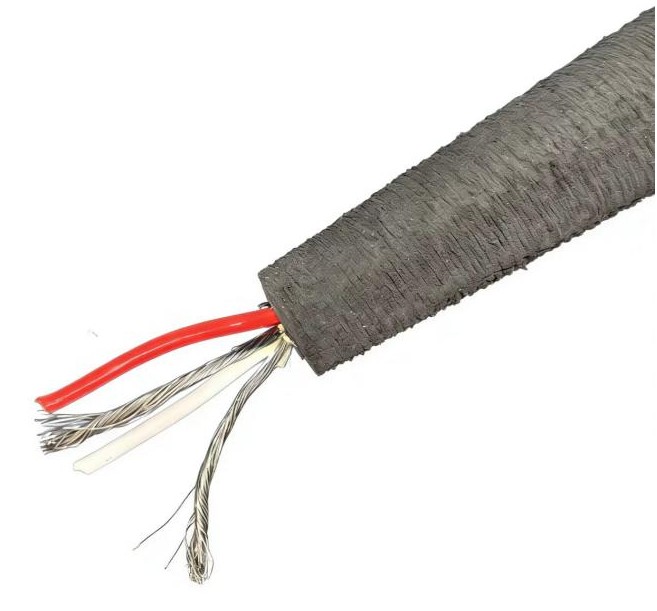

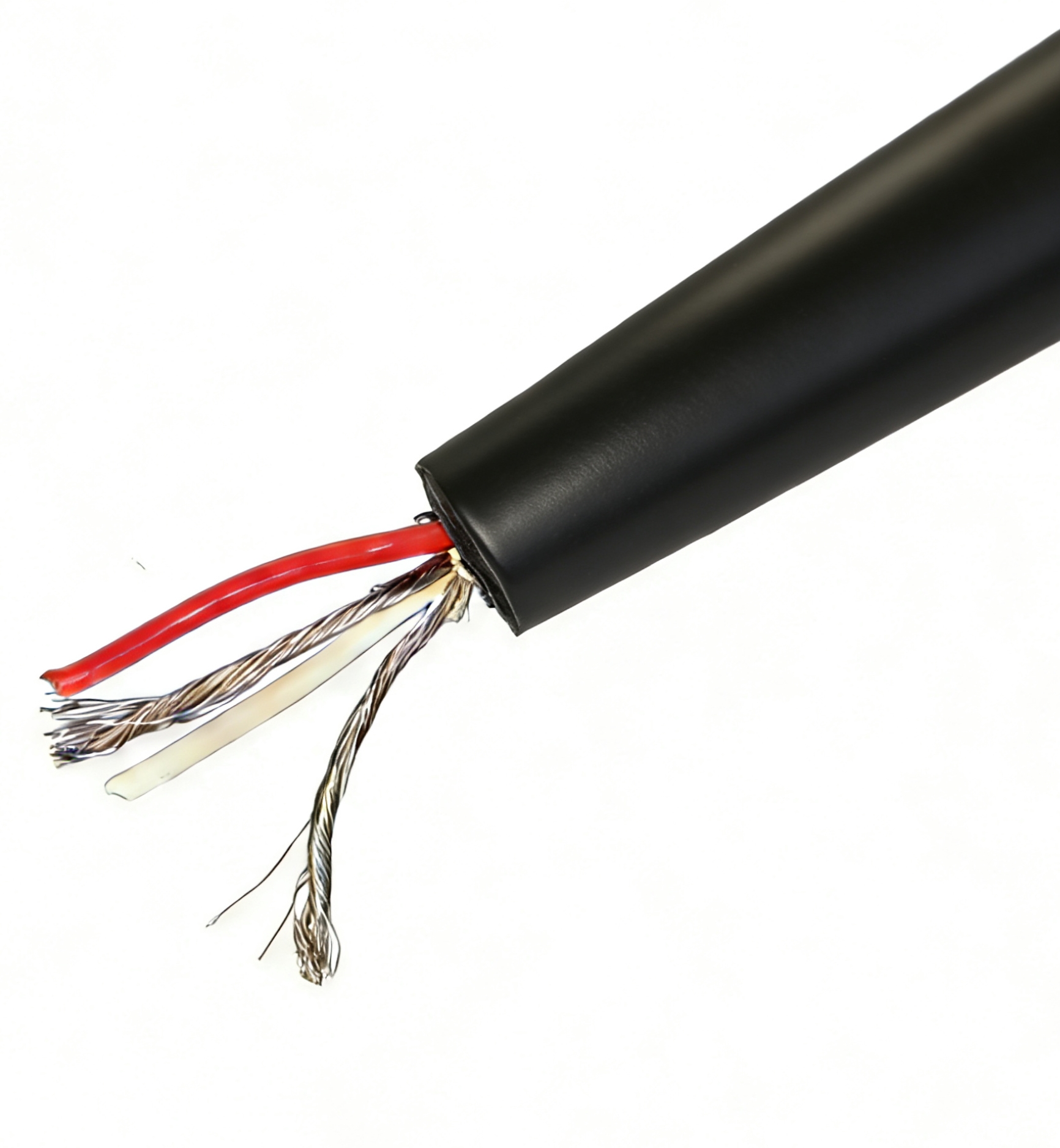

| Number of internal cores (and parameters) | 3 |
1. High voltage tolerance: High-voltage cables are made of high-strength insulation materials and conductive materials, capable of withstanding the impact of high-voltage currents, ensuring that the cables are not damaged or short-circuited due to high voltage.
2. Stable electrical performance: The internal conductors of the cables are made of high-quality copper materials, with good conductivity and stable electrical characteristics, ensuring the accuracy and stability of signal transmission.
3. Wear resistance: The outer layer of the cable is made of wear-resistant sheath material, effectively preventing the cable from being worn or damaged by external objects during use, extending the service life of the cable.
4. Waterproof and moisture-proof performance: The cable sheath material has good waterproof and moisture-proof properties, effectively preventing moisture from penetrating into the cable, ensuring the normal operation of the cable in humid environments.
5. Safe and reliable: Both the internal conductors and the external sheath materials of the cable comply with national safety standards and have undergone rigorous quality inspections and tests, ensuring the safety and reliability of the product.
Mainly used on hospital X-ray machines, high-speed railway stations, train station security inspection machines, X-ray flaw detection machines, etc.
